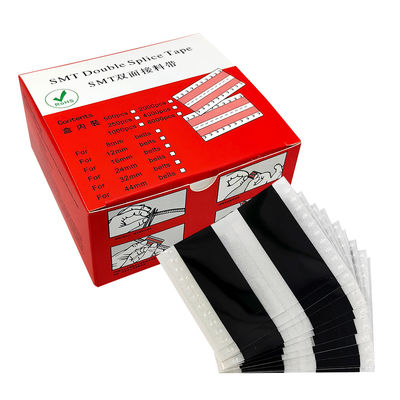

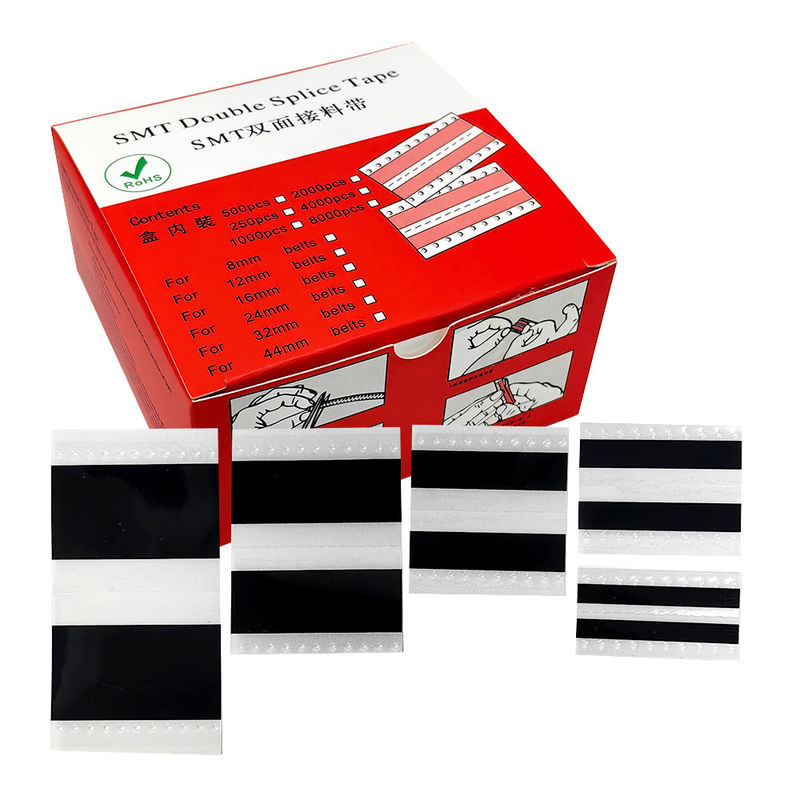

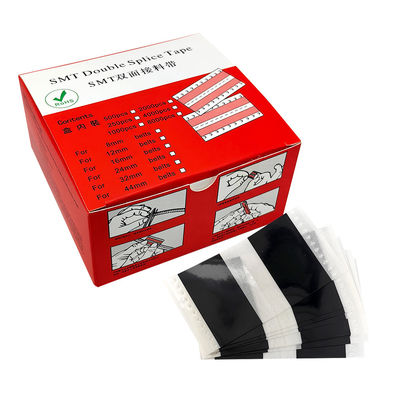

12mm Black Adhesive Conveyor Belt SMT Splice Tape SMT Spare Parts SMT Double Splice Tape
It is a material designed specifically for surface mount technology (SMT) production lines. It is mainly used to connect the material tape of electronic component feeders, ensuring the continuity and efficiency of the production line
Description:
| Material |
PET |
| Size |
8MM,12MM,16MM,24MM,24MM
|
| Color |
Yellow, Blue, Black,Silver |
| Type |
Double,Easy to tear |
| Surface resistance |
106-109ohms |
| Application |
Electronic Industry |
| Packing |
250PCS/500PCS/Box |
1. Product Overview
Purpose: Used in SMT production lines to connect two segments of electronic component tapes (such as braided resistors, capacitors, etc.) through adhesive bonding, avoiding downtime and material replacement caused by tape exhaustion, and improving production efficiency.
Size: Width of 12 millimeters, suitable for most standard SMT feeders.
Color: Black, usually used to distinguish between different functions or types of material strips, and black may help reduce light reflection and improve operational visibility.
2. Structure and Materials
Substrate: High strength and wear-resistant polyester (PET) or polyimide (PI) films are usually used as substrates to ensure the flexibility and durability of the receiving tape.
Adhesive: Using high viscosity and high temperature resistant pressure-sensitive adhesive (PSA), it can maintain stable bonding performance in high temperature environments and is suitable for high temperature environments in SMT production lines (such as before reflow soldering furnaces).
Back lining: Some of the receiving tapes may have release paper or release film, which makes it easy for operators to tear off during receiving and protects the adhesive from contamination.
3. Performance characteristics
High viscosity: Ensure that the material belt is firmly connected to avoid detachment during high-speed transportation.
High temperature resistance: able to maintain adhesive performance in the high temperature environment of SMT production line (such as above 200 ° C), without peeling or residue.
Anti static: Some material strips may have anti-static function to prevent static electricity from damaging electronic components.
Easy to operate: The design is simple, making it easy for operators to quickly and accurately complete the material receiving operation.
Strong compatibility: Suitable for most standard SMT feeders and tapes, without the need for special equipment or tools.
4. Application scenarios
SMT production line: used for connecting electronic components with material strips to ensure the continuity and efficiency of the production line.
Automated SMT: Suitable for high-speed and high-precision automated SMT equipment, reducing downtime and improving production efficiency.
Electronic manufacturing: widely used in the manufacturing process of electronic products such as mobile phones, computers, and home appliances.
5. Instructions for use
Preparation: Align the material strips that need to be connected to ensure that the receiving position is flat.
Tear off release paper: If the receiving tape has release paper, it is necessary to first tear off the release paper to expose the adhesive.

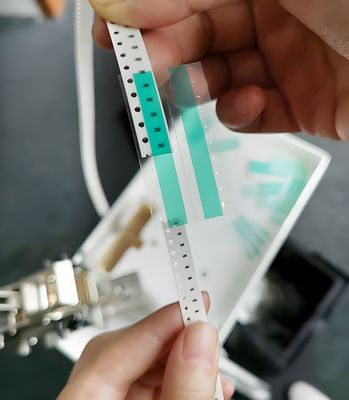

Paste: Paste the tape at the seam of the tape to ensure a firm bond.
Inspection: Check if the material receiving area is flat and secure, ensuring that there are no bubbles or curled edges.
Continue production: Reinstall the connected material strip into the feeder and continue production.
